SST 15.0
Structural Simulation Toolkit
Public Member Functions | Protected Member Functions | Protected Attributes
SST::TimeVortex Class Referenceabstract

Primary Event Queue. More...

#include <timeVortex.h>

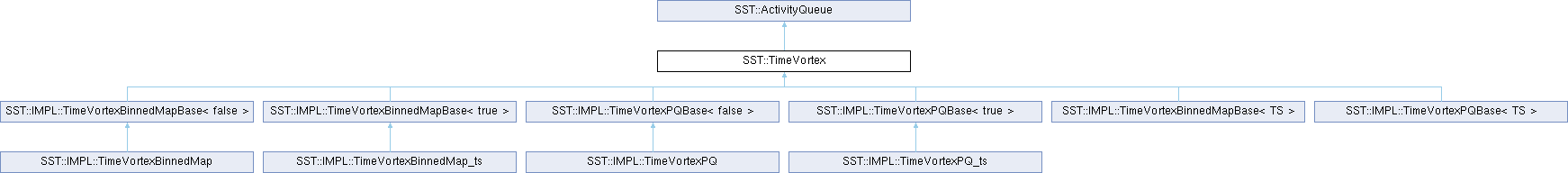

Inheritance diagram for SST::TimeVortex:
SST::ActivityQueue SST::IMPL::TimeVortexBinnedMapBase< false > SST::IMPL::TimeVortexBinnedMapBase< true > SST::IMPL::TimeVortexPQBase< false > SST::IMPL::TimeVortexPQBase< true > SST::IMPL::TimeVortexBinnedMapBase< TS > SST::IMPL::TimeVortexPQBase< TS > SST::IMPL::TimeVortexBinnedMap SST::IMPL::TimeVortexBinnedMap_ts SST::IMPL::TimeVortexPQ SST::IMPL::TimeVortexPQ_ts

Public Member Functions

virtual bool empty () override=0
 Returns true if the queue is empty.

virtual int size () override=0
 Returns the number of activities in the queue.

virtual void insert (Activity *activity) override=0
 Insert a new activity into the queue.

virtual Activity * pop () override=0
 Remove and return the next activity.

virtual Activity * front () override=0
 Returns the next activity.

virtual void print (Output &out) const =0
 Print the state of the TimeVortex.

virtual uint64_t getMaxDepth () const

virtual uint64_t getCurrentDepth () const =0

virtual void dbg_print (Output &out)

virtual void serialize_order (SST::Core::Serialization::serializer &ser)

virtual void fixup_handlers ()


Protected Member Functions

void fixup (Activity *act)


Protected Attributes

uint64_t max_depth


Detailed Description

Primary Event Queue.

Member Function Documentation

◆ empty()

virtual bool SST::TimeVortex::empty ( )
overridepure virtual

Returns true if the queue is empty.

Implements SST::ActivityQueue.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, and SST::IMPL::TimeVortexPQBase< true >.

◆ front()

virtual Activity * SST::TimeVortex::front ( )
overridepure virtual

Returns the next activity.

Implements SST::ActivityQueue.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, and SST::IMPL::TimeVortexPQBase< true >.

◆ insert()

virtual void SST::TimeVortex::insert ( Activity * activity)
overridepure virtual

Insert a new activity into the queue.

Implements SST::ActivityQueue.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, and SST::IMPL::TimeVortexPQBase< true >.

◆ pop()

virtual Activity * SST::TimeVortex::pop ( )
overridepure virtual

Remove and return the next activity.

Implements SST::ActivityQueue.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, and SST::IMPL::TimeVortexPQBase< true >.

◆ print()

virtual void SST::TimeVortex::print ( Output & out) const
pure virtual

Print the state of the TimeVortex.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, and SST::IMPL::TimeVortexPQBase< true >.

◆ size()

virtual int SST::TimeVortex::size ( )
overridepure virtual

Returns the number of activities in the queue.

Implements SST::ActivityQueue.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, and SST::IMPL::TimeVortexPQBase< true >.

The documentation for this class was generated from the following files:
