Public Member Functions
SST::ActivityQueue Class Referenceabstract

Base Class for a queue of Activities. More...

#include <activityQueue.h>

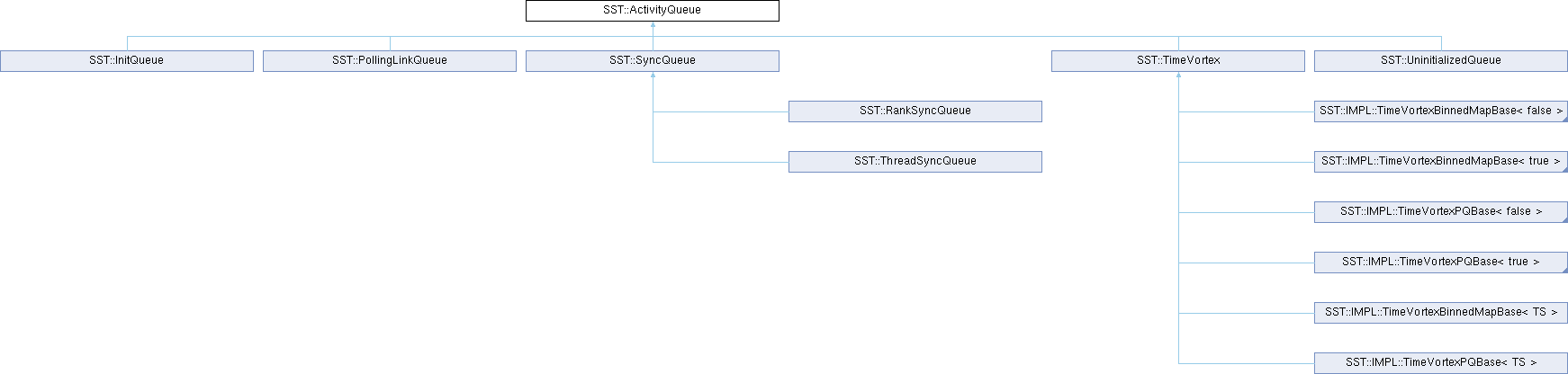

Inheritance diagram for SST::ActivityQueue:
SST::InitQueue SST::PollingLinkQueue SST::SyncQueue SST::TimeVortex SST::UninitializedQueue SST::RankSyncQueue SST::ThreadSyncQueue SST::IMPL::TimeVortexBinnedMapBase< false > SST::IMPL::TimeVortexBinnedMapBase< true > SST::IMPL::TimeVortexPQBase< false > SST::IMPL::TimeVortexPQBase< true > SST::IMPL::TimeVortexBinnedMapBase< TS > SST::IMPL::TimeVortexPQBase< TS >

Public Member Functions

virtual bool empty ()=0
 Returns true if the queue is empty.

virtual int size ()=0
 Returns the number of activities in the queue.

virtual Activity * pop ()=0
 Remove and return the next activity.

virtual void insert (Activity *activity)=0
 Insert a new activity into the queue.

virtual Activity * front ()=0
 Returns the next activity.


Detailed Description

Base Class for a queue of Activities.

Member Function Documentation

◆ empty()

virtual bool SST::ActivityQueue::empty ( )
pure virtual

Returns true if the queue is empty.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, SST::IMPL::TimeVortexPQBase< true >, SST::InitQueue, SST::PollingLinkQueue, SST::RankSyncQueue, SST::ThreadSyncQueue, SST::TimeVortex, and SST::UninitializedQueue.

◆ front()

virtual Activity * SST::ActivityQueue::front ( )
pure virtual

Returns the next activity.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, SST::IMPL::TimeVortexPQBase< true >, SST::InitQueue, SST::PollingLinkQueue, SST::RankSyncQueue, SST::ThreadSyncQueue, SST::TimeVortex, and SST::UninitializedQueue.

◆ insert()

virtual void SST::ActivityQueue::insert ( Activity * activity)
pure virtual

Insert a new activity into the queue.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, SST::IMPL::TimeVortexPQBase< true >, SST::InitQueue, SST::PollingLinkQueue, SST::RankSyncQueue, SST::ThreadSyncQueue, SST::TimeVortex, and SST::UninitializedQueue.

◆ pop()

virtual Activity * SST::ActivityQueue::pop ( )
pure virtual

Remove and return the next activity.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, SST::IMPL::TimeVortexPQBase< true >, SST::InitQueue, SST::PollingLinkQueue, SST::RankSyncQueue, SST::ThreadSyncQueue, SST::TimeVortex, and SST::UninitializedQueue.

◆ size()

virtual int SST::ActivityQueue::size ( )
pure virtual

Returns the number of activities in the queue.

Implemented in SST::IMPL::TimeVortexBinnedMapBase< TS >, SST::IMPL::TimeVortexBinnedMapBase< false >, SST::IMPL::TimeVortexBinnedMapBase< true >, SST::IMPL::TimeVortexPQBase< TS >, SST::IMPL::TimeVortexPQBase< false >, SST::IMPL::TimeVortexPQBase< true >, SST::InitQueue, SST::PollingLinkQueue, SST::RankSyncQueue, SST::ThreadSyncQueue, SST::TimeVortex, and SST::UninitializedQueue.

The documentation for this class was generated from the following file:
