Holder of data grouped into pre-determined width bins. More...

#include <stathistogram.h>

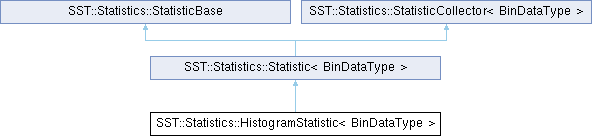

Inheritance diagram for SST::Statistics::HistogramStatistic< BinDataType >:

Public Member Functions
	SST_ELI_DECLARE_STATISTIC_TEMPLATE (HistogramStatistic, "sst", "HistogramStatistic", SST_ELI_ELEMENT_VERSION(1, 0, 0), "Track distribution of statistic across bins", "SST::Statistic<T>") HistogramStatistic(BaseComponent *comp

allowedKeySet	push_back ("minvalue")

allowedKeySet	push_back ("binwidth")

allowedKeySet	push_back ("numbins")

allowedKeySet	push_back ("dumpbinsonoutput")

allowedKeySet	push_back ("includeoutofbounds")

statParams	pushAllowedKeys (allowedKeySet)

this	setCollectionCount (0)

virtual const std::string &	getStatTypeName () const override
	Return the Statistic type name.

void	serialize_order (SST::Core::Serialization::serializer &ser) override
	Serialization.

Public Member Functions inherited from SST::Statistics::Statistic< BinDataType >
	SST_ELI_DECLARE_INFO (ELI::ProvidesInterface, ELI::ProvidesParams) SST_ELI_DOCUMENT_PARAMS(

void	addData (InArgs &&... args)
	Add data to the Statistic This will call the addData_impl() routine in the derived Statistic.

void	addDataNTimes (uint64_t N, InArgs &&... args)

Public Member Functions inherited from SST::Statistics::StatisticBase
void	enable ()
	Enable Statistic for collections.

void	disable ()
	Disable Statistic for collections.

virtual void	resetCollectionCount ()
	Set the current collection count to 0.

virtual void	incrementCollectionCount (uint64_t increment)
	Increment current collection count.

virtual void	setCollectionCount (uint64_t new_count)
	Set the current collection count to a defined value.

virtual void	setCollectionCountLimit (uint64_t new_limit)
	Set the collection count limit to a defined value.

void	setFlagResetCountOnOutput (bool flag)
	Set the Reset Count On Output flag.

void	setFlagClearDataOnOutput (bool flag)
	Set the Clear Data On Output flag.

void	setFlagOutputAtEndOfSim (bool flag)
	Set the Output At End Of Sim flag.

const std::string &	getCompName () const
	Return the Component Name.

const std::string &	getStatName () const
	Return the Statistic Name.

const std::string &	getStatSubId () const
	Return the Statistic SubId.

const std::string &	getFullStatName () const
	Return the full Statistic name of component.stat_name.sub_id.

virtual std::string	getELIName () const =0
	Return the ELI type of the statistic The ELI registration macro creates this function automatically for child classes.

const StatisticFieldInfo::fieldType_t &	getStatDataType () const
	Return the Statistic data type.

const char *	getStatDataTypeShortName () const
	Return the Statistic data type.

const char *	getStatDataTypeFullName () const
	Return the Statistic data type.

BaseComponent *	getComponent () const
	Return a pointer to the parent Component.

bool	isEnabled () const
	Return the enable status of the Statistic.

bool	isOutputEnabled () const
	Return the enable status of the Statistic's ability to output data.

UnitAlgebra &	getCollectionRate () const
	Return the rate at which the statistic should be output.

UnitAlgebra &	getStartAtTime () const
	Return the time at which the statistic should be enabled.

UnitAlgebra &	getStopAtTime () const
	Return the time at which the statistic should be disabled.

uint64_t	getCollectionCountLimit () const
	Return the collection count limit.

uint64_t	getCollectionCount () const
	Return the current collection count.

bool	getFlagResetCountOnOutput () const
	Return the ResetCountOnOutput flag value.

bool	getFlagClearDataOnOutput () const
	Return the ClearDataOnOutput flag value.

bool	getFlagOutputAtEndOfSim () const
	Return the OutputAtEndOfSim flag value.

StatMode_t	getRegisteredCollectionMode () const
	Return the collection mode that is registered.

virtual bool	isReady () const
	Indicate that the Statistic is Ready to be used.

virtual bool	isNullStatistic () const
	Indicate if the Statistic is a NullStatistic.

Data Fields
const std::string &	statName

const std::string const std::string &	statSubId

const std::string const std::string Params &	statParams: Statistic<BinDataType>(comp

const std::string const std::string Params	statName

const std::string const std::string Params	statSubId

const std::string const std::string Params	statParams

	m_minValue = statParams.find<BinDataType>("minvalue", 0)

	m_binWidth = statParams.find<NumBinsType>("binwidth", 5000)

	m_numBins = statParams.find<NumBinsType>("numbins", 100)

	m_dumpBinsOnOutput = statParams.find<bool>("dumpbinsonoutput", true)

	m_includeOutOfBounds = statParams.find<bool>("includeoutofbounds", true)

	m_totalSummed = 0

	m_totalSummedSqr = 0

	m_OOBMinCount = 0

	m_OOBMaxCount = 0

	m_itemsBinnedCount = 0

Protected Member Functions
void	addData_impl_Ntimes (uint64_t N, BinDataType value) override
	Adds a new value to the histogram.

void	addData_impl (BinDataType value) override

Protected Member Functions inherited from SST::Statistics::Statistic< BinDataType >
	Statistic (BaseComponent *comp, const std::string &stat_name, const std::string &stat_sub_id, Params &stat_params, bool null_stat=false)
	Construct a Statistic.

Protected Member Functions inherited from SST::Statistics::StatisticBase
	StatisticBase (BaseComponent *comp, const std::string &stat_name, const std::string &stat_sub_id, Params &stat_params, bool null_stat)
	Construct a StatisticBase.

void	setStatisticDataType (const StatisticFieldInfo::fieldType_t data_type)
	Set the Statistic Data Type.

void	setStatisticTypeName (const char *type_name)
	Set an optional Statistic Type Name (for output)

Additional Inherited Members
Public Types inherited from SST::Statistics::StatisticBase
enum	StatMode_t { STAT_MODE_UNDEFINED , STAT_MODE_COUNT , STAT_MODE_PERIODIC , STAT_MODE_DUMP_AT_END }
	Statistic collection mode STAT_MODE_UNDEFINED - unknown mode STAT_MODE_COUNT - generating statistic output when the statistic has been added to a certain number of times STAT_MODE_PERIODIC - generating statistic output on a periodic time basis STAT_MODE_DUMP_AT_END - generating statistic output only at end of simulation.

Static Public Member Functions inherited from SST::Statistics::Statistic< BinDataType >
static fieldType_t	fieldId ()

Static Public Member Functions inherited from SST::Statistics::StatisticBase
static const std::vector< ElementInfoParam > &	ELI_getParams ()

Detailed Description

template<class BinDataType>
class SST::Statistics::HistogramStatistic< BinDataType >

Holder of data grouped into pre-determined width bins.

Template Parameters

BinDataType is the type of the data held in each bin (i.e. what data type described the width of the bin)

Member Function Documentation

◆ addData_impl_Ntimes()

template<class BinDataType>

void SST::Statistics::HistogramStatistic< BinDataType >::addData_impl_Ntimes	(	uint64_t	N,
		BinDataType	value )

inlineoverrideprotected

Adds a new value to the histogram.

The correct bin is identified and then incremented. If no bin can be found to hold the value then a new bin is created.

◆ getStatTypeName()

template<class BinDataType>

virtual const std::string & SST::Statistics::HistogramStatistic< BinDataType >::getStatTypeName ( ) const

inlineoverridevirtual

Return the Statistic type name.

Reimplemented from SST::Statistics::StatisticBase.

◆ serialize_order()

template<class BinDataType>

void SST::Statistics::HistogramStatistic< BinDataType >::serialize_order ( SST::Core::Serialization::serializer & ser )

inlineoverridevirtual

Serialization.

Reimplemented from SST::Statistics::Statistic< BinDataType >.

References SST::Statistics::Statistic< T >::serialize_order().

Field Documentation

◆ statParams

template<class BinDataType>

const std::string const std::string Params SST::Statistics::HistogramStatistic< BinDataType >::statParams

Initial value:

{

        std::vector<std::string> allowedKeySet

The documentation for this class was generated from the following file:

src/sst/core/statapi/stathistogram.h
