Main component object for the simulation. More...

#include <component.h>

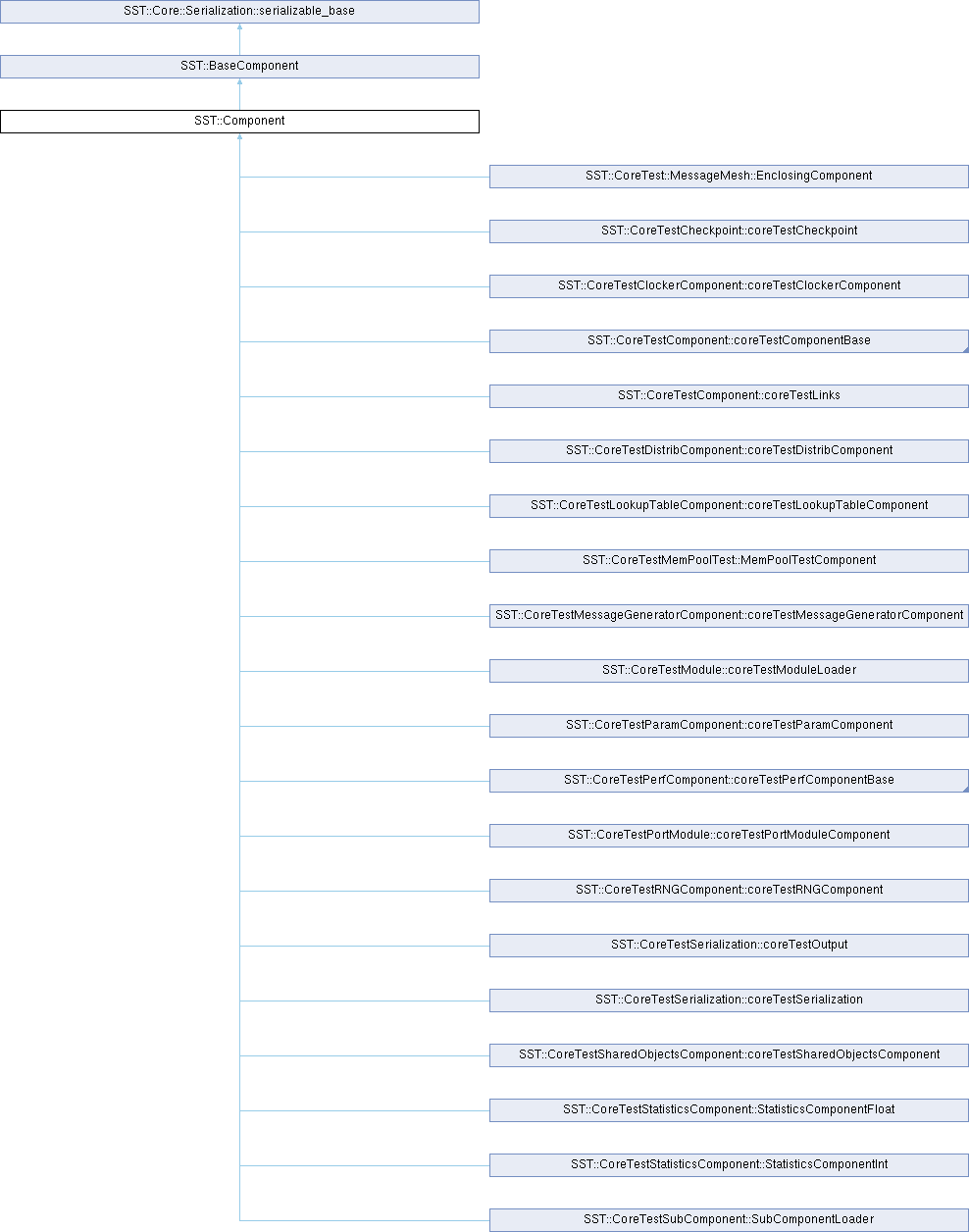

Inheritance diagram for SST::Component:

Public Member Functions
	SST_ELI_DECLARE_INFO_EXTERN (ELI::ProvidesCategory, ELI::ProvidesParams, ELI::ProvidesPorts, ELI::ProvidesSubComponentSlots, ELI::ProvidesStats, ELI::ProvidesProfilePoints, ELI::ProvidesAttributes) explicit Component(ComponentId_t id)
	Constructor.

void	registerAsPrimaryComponent ()
	Register as a primary component, which allows the component to specify when it is and is not OK to end simulation.

void	primaryComponentDoNotEndSim ()
	Tells the simulation that it should not exit.

void	primaryComponentOKToEndSim ()
	Tells the simulation that it is now OK to end simulation.

void	serialize_order (SST::Core::Serialization::serializer &ser) override

Public Member Functions inherited from SST::BaseComponent
	BaseComponent (ComponentId_t id)

	BaseComponent (const BaseComponent &)=delete

BaseComponent &	operator= (const BaseComponent &)=delete

const std::string &	getType () const

ComponentId_t	getId () const
	Returns unique component ID.

uint8_t	getStatisticLoadLevel () const
	Returns Component Statistic load level.

virtual void	emergencyShutdown ()
	Called when SIGINT or SIGTERM has been seen.

const std::string &	getName () const
	Returns Component/SubComponent Name.

const std::string &	getParentComponentName () const
	Returns the name of the parent Component, or, if called on a Component, the name of that Component.

virtual void	init (unsigned int UNUSED(phase))
	Used during the init phase.

virtual void	complete (unsigned int UNUSED(phase))
	Used during the complete phase after the end of simulation.

virtual void	setup ()
	Called after all components have been constructed and initialization has completed, but before simulation time has begun.

virtual void	finish ()
	Called after complete phase, but before objects are destroyed.

virtual bool	Status ()
	Currently unused function.

virtual void	printStatus (Output &UNUSED(out))
	Called by the Simulation to request that the component print it's current status.

UnitAlgebra	getCoreTimeBase () const
	Get the core timebase.

SimTime_t	getCurrentSimCycle () const
	Return the current simulation time as a cycle count.

int	getCurrentPriority () const
	Return the current priority.

UnitAlgebra	getElapsedSimTime () const
	Return the elapsed simulation time as a time.

SimTime_t	getEndSimCycle () const
	Return the end simulation time as a cycle count.

UnitAlgebra	getEndSimTime () const
	Return the end simulation time as a time.

RankInfo	getRank () const
	Get this instance's parallel rank.

RankInfo	getNumRanks () const
	Get the number of parallel ranks in the simulation.

Output &	getSimulationOutput () const
	Return the base simulation Output class instance.

SimTime_t	getCurrentSimTime (TimeConverter *tc) const
	Return the simulated time since the simulation began in units specified by the parameter.

SimTime_t	getCurrentSimTime (TimeConverter tc) const

SimTime_t	getCurrentSimTime () const
	Return the simulated time since the simulation began in the default timebase.

SimTime_t	getCurrentSimTime (const std::string &base) const
	Return the simulated time since the simulation began in timebase specified.

SimTime_t	getCurrentSimTimeNano () const
	Utility function to return the time since the simulation began in nanoseconds.

SimTime_t	getCurrentSimTimeMicro () const
	Utility function to return the time since the simulation began in microseconds.

SimTime_t	getCurrentSimTimeMilli () const
	Utility function to return the time since the simulation began in milliseconds.

double	getRunPhaseElapsedRealTime () const
	Get the amount of real-time spent executing the run phase of the simulation.

double	getInitPhaseElapsedRealTime () const
	Get the amount of real-time spent executing the init phase of the simulation.

double	getCompletePhaseElapsedRealTime () const
	Get the amount of real-time spent executing the complete phase of the simulation.

void	addWatchPoint (WatchPoint *pt)
	Add a watch point to all handlers in the Component Tree.

void	removeWatchPoint (WatchPoint *pt)
	Remove a watch point from all handlers in the Component Tree.

SubComponentSlotInfo *	getSubComponentSlotInfo (const std::string &name, bool fatalOnEmptyIndex=false)

const std::vector< double > &	getCoordinates () const
	Retrieve the X,Y,Z coordinates of this component.

Public Member Functions inherited from SST::Core::Serialization::serializable_base
virtual const char *	cls_name () const =0

virtual uint32_t	cls_id () const =0

virtual std::string	serialization_name () const =0

Additional Inherited Members
Static Public Attributes inherited from SST::Core::Serialization::serializable_base
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()

Protected Types inherited from SST::BaseComponent
using	StatCreateFunction

Protected Types inherited from SST::Core::Serialization::serializable_base
enum	cxn_flag_t { ConstructorFlag }

Protected Member Functions inherited from SST::BaseComponent
bool	isSimulationRunModeInit () const
	Check to see if the run mode was set to INIT.

bool	isSimulationRunModeRun () const
	Check to see if the run mode was set to RUN.

bool	isSimulationRunModeBoth () const
	Check to see if the run mode was set to BOTH.

std::string &	getOutputDirectory () const
	Returns the output directory of the simulation.

void	requireLibrary (const std::string &name)
	Signifies that a library is required for this simulation.

bool	isPortConnected (const std::string &name) const
	Determine if a port name is connected to any links.

Link *	configureLink (const std::string &name, TimeConverter time_base, Event::HandlerBase handler=nullptr)
	Configure a Link.

Link *	configureLink (const std::string &name, TimeConverter time_base, Event::HandlerBase *handler=nullptr)

Link *	configureLink (const std::string &name, const std::string &time_base, Event::HandlerBase *handler=nullptr)
	Configure a Link.

Link *	configureLink (const std::string &name, const UnitAlgebra &time_base, Event::HandlerBase *handler=nullptr)
	Configure a Link.

Link *	configureLink (const std::string &name, Event::HandlerBase *handler=nullptr)
	Configure a Link.

Link *	configureSelfLink (const std::string &name, TimeConverter time_base, Event::HandlerBase handler=nullptr)
	Configure a SelfLink (Loopback link)

Link *	configureSelfLink (const std::string &name, TimeConverter time_base, Event::HandlerBase *handler=nullptr)

Link *	configureSelfLink (const std::string &name, const std::string &time_base, Event::HandlerBase *handler=nullptr)
	Configure a SelfLink (Loopback link)

Link *	configureSelfLink (const std::string &name, const UnitAlgebra &time_base, Event::HandlerBase *handler=nullptr)
	Configure a SelfLink (Loopback link)

Link *	configureSelfLink (const std::string &name, Event::HandlerBase *handler=nullptr)
	Configure a SelfLink (Loopback link)

TimeConverter *	registerClock (const std::string &freq, Clock::HandlerBase *handler, bool regAll=true)
	Registers a clock for this component.

TimeConverter *	registerClock (const UnitAlgebra &freq, Clock::HandlerBase *handler, bool regAll=true)
	Registers a clock for this component.

TimeConverter *	registerClock (TimeConverter tc, Clock::HandlerBase handler, bool regAll=true)
	Registers a clock for this component.

TimeConverter *	registerClock (TimeConverter tc, Clock::HandlerBase *handler, bool regAll=true)

void	unregisterClock (TimeConverter tc, Clock::HandlerBase handler)
	Removes a clock handler from the component.

void	unregisterClock (TimeConverter tc, Clock::HandlerBase *handler)

Cycle_t	reregisterClock (TimeConverter freq, Clock::HandlerBase handler)
	Reactivates an existing Clock and Handler.

Cycle_t	reregisterClock (TimeConverter freq, Clock::HandlerBase *handler)

Cycle_t	getNextClockCycle (TimeConverter *freq)
	Returns the next Cycle that the TimeConverter would fire If called prior to the simulation run loop, next Cycle is 0.

Cycle_t	getNextClockCycle (TimeConverter freq)

TimeConverter *	registerTimeBase (const std::string &base, bool regAll=true)
	Registers a default time base for the component and optionally sets the the component's links to that timebase.

TimeConverter *	getTimeConverter (const std::string &base) const

TimeConverter *	getTimeConverter (const UnitAlgebra &base) const

bool	isStatisticShared (const std::string &statName, bool include_me=false)

void	initiateInteractive (const std::string &msg)

template<typename T>
Statistics::Statistic< T > *	registerStatistic (SST::Params &params, const std::string &statName, const std::string &statSubId="")
	Registers a statistic.

template<typename T>
Statistics::Statistic< T > *	registerStatistic (const std::string &statName, const std::string &statSubId="")

template<typename... Args>
Statistics::Statistic< std::tuple< Args... > > *	registerMultiStatistic (const std::string &statName, const std::string &statSubId="")

template<typename... Args>
Statistics::Statistic< std::tuple< Args... > > *	registerMultiStatistic (SST::Params &params, const std::string &statName, const std::string &statSubId="")

template<typename T>
Statistics::Statistic< T > *	registerStatistic (const char statName, const char statSubId="")

void	performStatisticOutput (Statistics::StatisticBase *stat)
	Called by the Components and Subcomponent to perform a statistic Output.

void	performGlobalStatisticOutput ()
	Performs a global statistic Output.

template<typename T>
T::ProfilePoint *	registerProfilePoint (const std::string &pointName)
	Registers a profiling point.

template<class T, class... ARGS>
T *	loadModule (const std::string &type, Params &params, ARGS... args)
	Loads a module from an element Library.

template<class T, class... ARGS>
T *	loadComponentExtension (ARGS... args)

template<class T>
bool	isSubComponentLoadableUsingAPI (const std::string &type)
	Check to see if a given element type is loadable with a particular API.

template<class T>
bool	isUserSubComponentLoadableUsingAPI (const std::string &slot_name)
	Check to see if the element type loaded by the user into the.

template<class T, class... ARGS>
T *	loadAnonymousSubComponent (const std::string &type, const std::string &slot_name, int slot_num, uint64_t share_flags, Params &params, ARGS... args)
	Loads an anonymous subcomponent (not defined in input file to SST run).

template<class T>
T *	loadUserSubComponent (const std::string &slot_name)
	Loads a user defined subcomponent (defined in input file to SST run).

template<class T, class... ARGS>
T *	loadUserSubComponent (const std::string &slot_name, uint64_t share_flags, ARGS... args)
	Loads a user defined subcomponent (defined in input file to SST run).

void	fatal (uint32_t line, const char file, const char func, int exit_code, const char *format,...) const
	Convenience function for reporting fatal conditions.

void	sst_assert (bool condition, uint32_t line, const char file, const char func, int exit_code, const char *format,...) const
	Convenience function for testing for and reporting fatal conditions.

bool	isAnonymous ()

bool	isUser ()

void	setDefaultTimeBase (TimeConverter *tc)
	Manually set the default defaultTimeBase.

void	setDefaultTimeBase (TimeConverter tc)
	Manually set the default defaultTimeBase.

TimeConverter *	getDefaultTimeBase ()

const TimeConverter *	getDefaultTimeBase () const

bool	doesSubComponentExist (const std::string &type)

bool	doesComponentInfoStatisticExist (const std::string &statisticName) const

uint8_t	getComponentInfoStatisticEnableLevel (const std::string &statisticName) const

std::vector< Profile::ComponentProfileTool * >	getComponentProfileTools (const std::string &point)

Static Protected Member Functions inherited from SST::Core::Serialization::serializable_base
static void	serializable_abort (uint32_t line, const char file, const char func, const char *obj)

Detailed Description

Main component object for the simulation.

All models inherit from this.

Member Function Documentation

◆ primaryComponentDoNotEndSim()

void SST::Component::primaryComponentDoNotEndSim ( )

Tells the simulation that it should not exit.

The component will remain in this state until a call to primaryComponentOKToEndSim().

@sa Component::registerAsPrimaryComponent()
@sa Component::primaryComponentOKToEndSim()

References SST::BaseComponent::getId(), SST::Simulation_impl::getSimulation(), and primaryComponentDoNotEndSim().

Referenced by primaryComponentDoNotEndSim(), and SST_ELI_DECLARE_INFO_EXTERN().

◆ primaryComponentOKToEndSim()

void SST::Component::primaryComponentOKToEndSim ( )

Tells the simulation that it is now OK to end simulation.

Simulation will not end until all primary components have called this function.

@sa Component::registerAsPrimaryComponent()
@sa Component::primaryComponentDoNotEndSim()

References SST::BaseComponent::getId(), SST::Simulation_impl::getSimulation(), and primaryComponentOKToEndSim().

Referenced by primaryComponentOKToEndSim(), and SST_ELI_DECLARE_INFO_EXTERN().

◆ registerAsPrimaryComponent()

void SST::Component::registerAsPrimaryComponent ( )

Register as a primary component, which allows the component to specify when it is and is not OK to end simulation.

The simulator will not end simulation naturally (through use of the Exit object) while any primary component has specified primaryComponentDoNotEndSim(). However, it is still possible for Actions other than Exit to end simulation. Once all primary components have specified primaryComponentOKToEndSim(), the Exit object will trigger and end simulation.

This must be called during simulation wireup (i.e during the constructor for the component). By default, the state of the primary component is set to OKToEndSim.

If no component registers as a primary component, then the Exit object will not be used for that simulation and simulation termination must be accomplished through some other mechanism (e.g. –stopAt flag, or some other Action object).

@sa Component::primaryComponentDoNotEndSim()
@sa Component::primaryComponentOKToEndSim()

References registerAsPrimaryComponent().

Referenced by registerAsPrimaryComponent(), and SST_ELI_DECLARE_INFO_EXTERN().

◆ serialize_order()

void SST::Component::serialize_order ( SST::Core::Serialization::serializer & ser )

overridevirtual

Implements SST::Core::Serialization::serializable_base.

◆ SST_ELI_DECLARE_INFO_EXTERN()

SST::Component::SST_ELI_DECLARE_INFO_EXTERN	(	ELI::ProvidesCategory	,
		ELI::ProvidesParams	,
		ELI::ProvidesPorts	,
		ELI::ProvidesSubComponentSlots	,
		ELI::ProvidesStats	,
		ELI::ProvidesProfilePoints	,
		ELI::ProvidesAttributes	)

Constructor.

Generally only called by the factory class.

Parameters

id	Unique component ID

References primaryComponentDoNotEndSim(), primaryComponentOKToEndSim(), registerAsPrimaryComponent(), and SST_ELI_DECLARE_INFO_EXTERN().

Referenced by SST_ELI_DECLARE_INFO_EXTERN().

The documentation for this class was generated from the following files:

src/sst/core/component.h
src/sst/core/component.cc

Public Member Functions
