SST::SSTHandlerBase< void, argT > Class Template Reference

Base template for handlers which take an class defined argument. More...

#include <ssthandler.h>

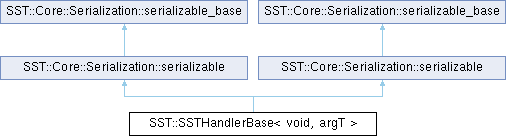

Inheritance diagram for SST::SSTHandlerBase< void, argT >:

Data Structures
class	AttachPoint
	Attach Point to get notified when a handler starts and stops. More...
class	InterceptPoint
	Attach Point to intercept the data being delivered by a Handler. More...

Public Member Functions
void	operator() (argT arg)
void	attachTool (AttachPoint *tool, const AttachPointMetaData &mdata)
	Attaches a tool to the AttachPoint.
void	detachTool (AttachPoint *tool)
	Remove an attached tool.
void	attachInterceptTool (InterceptPoint *tool, const AttachPointMetaData &mdata)
	Attaches a tool to the AttachPoint.
void	detachInterceptTool (InterceptPoint *tool)
	Remove an attached tool.
void	transferAttachedToolInfo (SSTHandlerBase *handler)
	Transfers attached tools from existing handler.
void	operator() (argT arg)
void	attachTool (AttachPoint *tool, const AttachPointMetaData &mdata)
	Attaches a tool to the AttachPoint.
void	detachTool (AttachPoint *tool)
	Remove an attached tool.
void	transferAttachedToolInfo (SSTHandlerBase *handler)
	Transfers attached tools from existing handler.
Public Member Functions inherited from SST::Core::Serialization::serializable_base
virtual const char *	cls_name () const =0
virtual uint32_t	cls_id () const =0
virtual std::string	serialization_name () const =0

Protected Member Functions
virtual void	operator_impl (argT)=0
void	serialize_order (SST::Core::Serialization::serializer &ser) override
virtual void	operator_impl (argT)=0
void	serialize_order (SST::Core::Serialization::serializer &ser) override

Additional Inherited Members
Static Public Attributes inherited from SST::Core::Serialization::serializable
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()
Static Public Attributes inherited from SST::Core::Serialization::serializable_base
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()
Protected Types inherited from SST::Core::Serialization::serializable_base
enum	cxn_flag_t { ConstructorFlag }
Static Protected Member Functions inherited from SST::Core::Serialization::serializable_base
static void	serializable_abort (uint32_t line, const char *file, const char *func, const char *obj)

Detailed Description

template<typename argT>
class SST::SSTHandlerBase< void, argT >

Base template for handlers which take an class defined argument.

This expansion covers the case of void return type. This version supports intercepts.

Member Function Documentation

attachInterceptTool()

template<typename argT>

void SST::SSTHandlerBase< void, argT >::attachInterceptTool ( InterceptPoint * tool, const AttachPointMetaData & mdata )

inline

Attaches a tool to the AttachPoint.

Parameters

tool	Tool to attach
mdata	Metadata to pass to the tool

References SST::SSTHandlerBase< void, argT >::InterceptPoint::registerHandlerIntercept().

attachTool() [1/2]

void SST::SSTHandlerBase< void, argT >::attachTool ( AttachPoint * tool, const AttachPointMetaData & mdata )

inline

Attaches a tool to the AttachPoint.

Parameters

tool	Tool to attach
mdata	Metadata to pass to the tool

attachTool() [2/2]

template<typename argT>

void SST::SSTHandlerBase< void, argT >::attachTool ( AttachPoint * tool, const AttachPointMetaData & mdata )

inline

Attaches a tool to the AttachPoint.

Parameters

tool	Tool to attach
mdata	Metadata to pass to the tool

References SST::SSTHandlerBase< void, argT >::AttachPoint::registerHandler().

detachInterceptTool()

template<typename argT>

void SST::SSTHandlerBase< void, argT >::detachInterceptTool ( InterceptPoint * tool )

inline

Remove an attached tool.

Parameters

tool	Tool to remove. If tool doesn't exist, then no action is taken

detachTool() [1/2]

void SST::SSTHandlerBase< void, argT >::detachTool ( AttachPoint * tool )

inline

Remove an attached tool.

Parameters

tool	Tool to remove. If tool doesn't exist, then no action is taken

detachTool() [2/2]

template<typename argT>

void SST::SSTHandlerBase< void, argT >::detachTool ( AttachPoint * tool )

inline

Remove an attached tool.

Parameters

tool	Tool to remove. If tool doesn't exist, then no action is taken

serialize_order() [1/2]

void SST::SSTHandlerBase< void, argT >::serialize_order ( SST::Core::Serialization::serializer & ser )

inlineoverrideprotectedvirtual

Implements SST::Core::Serialization::serializable_base.

serialize_order() [2/2]

template<typename argT>

void SST::SSTHandlerBase< void, argT >::serialize_order ( SST::Core::Serialization::serializer & ser )

inlineoverrideprotectedvirtual

Implements SST::Core::Serialization::serializable_base.

---

The documentation for this class was generated from the following file:

• src/sst/core/ssthandler.h
