SST::SSTHandlerBase< void, argT >::InterceptPoint Class Reference

Attach Point to intercept the data being delivered by a Handler. More...

#include <ssthandler.h>

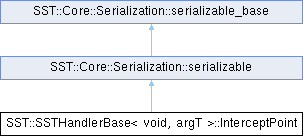

Inheritance diagram for SST::SSTHandlerBase< void, argT >::InterceptPoint:

Public Member Functions
virtual uintptr_t	registerHandlerIntercept (const AttachPointMetaData &mdata)=0
	Function that will be called when a handler is registered with the tool implementing the intercept attach point.
virtual void	interceptHandler (uintptr_t key, argT &data, bool &cancel)=0
	Function that will be called before the event handler to let the attach point intercept the data.
virtual void	serializeHandlerInterceptPointKey (SST::Core::Serialization::serializer &UNUSED(ser), uintptr_t &UNUSED(key))
	Function that will be called to handle the key returned from registerHandlerIntercept, if the AttachPoint tool is serializable.
void	operator() (argT arg)
void	attachTool (AttachPoint *tool, const AttachPointMetaData &mdata)
	Attaches a tool to the AttachPoint.
void	detachTool (AttachPoint *tool)
	Remove an attached tool.
void	transferAttachedToolInfo (SSTHandlerBase *handler)
	Transfers attached tools from existing handler.
Public Member Functions inherited from SST::Core::Serialization::serializable_base
virtual const char *	cls_name () const =0
virtual uint32_t	cls_id () const =0
virtual std::string	serialization_name () const =0

Protected Member Functions
virtual void	operator_impl (argT)=0
void	serialize_order (SST::Core::Serialization::serializer &ser) override

Additional Inherited Members
Static Public Attributes inherited from SST::Core::Serialization::serializable
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()
Static Public Attributes inherited from SST::Core::Serialization::serializable_base
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()
Protected Types inherited from SST::Core::Serialization::serializable_base
enum	cxn_flag_t { ConstructorFlag }
Static Protected Member Functions inherited from SST::Core::Serialization::serializable_base
static void	serializable_abort (uint32_t line, const char *file, const char *func, const char *obj)

Detailed Description

template<typename argT>
class SST::SSTHandlerBase< void, argT >::InterceptPoint

Attach Point to intercept the data being delivered by a Handler.

Class is not usable for Handlers that don't take a parameter and/or return a value

Member Function Documentation

attachTool()

void SST::SSTHandlerBase< void, argT >::attachTool ( AttachPoint * tool, const AttachPointMetaData & mdata )

inline

Attaches a tool to the AttachPoint.

Parameters

tool	Tool to attach
mdata	Metadata to pass to the tool

detachTool()

void SST::SSTHandlerBase< void, argT >::detachTool ( AttachPoint * tool )

inline

Remove an attached tool.

Parameters

tool	Tool to remove. If tool doesn't exist, then no action is taken

interceptHandler()

template<typename argT>

virtual void SST::SSTHandlerBase< void, argT >::InterceptPoint::interceptHandler ( uintptr_t key, argT & data, bool & cancel )

pure virtual

Function that will be called before the event handler to let the attach point intercept the data.

The data can be modified, and if cancel is set to true, the handler will not be executed. If cancel is set to true and the ownership of a pointer is passed by the call to the handler, then the function should also delete the data.

Parameters

	key	Key that was returned from registerHandlerIntercept() function
	data	Data that is to be passed to the handler
[out]	cancel	Set to true if the handler delivery should be cancelled.

registerHandlerIntercept()

template<typename argT>

virtual uintptr_t SST::SSTHandlerBase< void, argT >::InterceptPoint::registerHandlerIntercept ( const AttachPointMetaData & mdata )

pure virtual

Function that will be called when a handler is registered with the tool implementing the intercept attach point.

The metadata passed in will be dependent on what type of tool this is attached to. The uintptr_t returned from this function will be passed into the intercept() function.

Parameters

mdata

Metadata to be passed into the tool

Returns

Opaque key that will be passed back into interceptHandler() calls

Referenced by SST::SSTHandlerBase< void, argT >::attachInterceptTool().

serialize_order()

void SST::SSTHandlerBase< void, argT >::serialize_order ( SST::Core::Serialization::serializer & ser )

inlineoverrideprotectedvirtual

Implements SST::Core::Serialization::serializable_base.

serializeHandlerInterceptPointKey()

template<typename argT>

virtual void SST::SSTHandlerBase< void, argT >::InterceptPoint::serializeHandlerInterceptPointKey ( SST::Core::Serialization::serializer & UNUSEDser, uintptr_t & UNUSEDkey )

inlinevirtual

Function that will be called to handle the key returned from registerHandlerIntercept, if the AttachPoint tool is serializable.

This is needed because the key is opaque to the Link, so it doesn't know how to handle it during serialization. During SIZE and PACK phases of serialization, the tool needs to store out any information that will be needed to recreate data that is reliant on the key. On UNPACK, the function needs to recreate any state and reinitialize the passed in key reference to the proper state to continue to make valid calls to interceptHandler().

Since not all tools will be serializable, there is a default, empty implementation.

Parameters

ser	Serializer to use for serialization
key	Key that would be passed into the interceptHandler() function.

---

The documentation for this class was generated from the following file:

• src/sst/core/ssthandler.h
