SST::Event Class Reference

Base class for Events - Items sent across links to communicate between components. More...

#include <event.h>

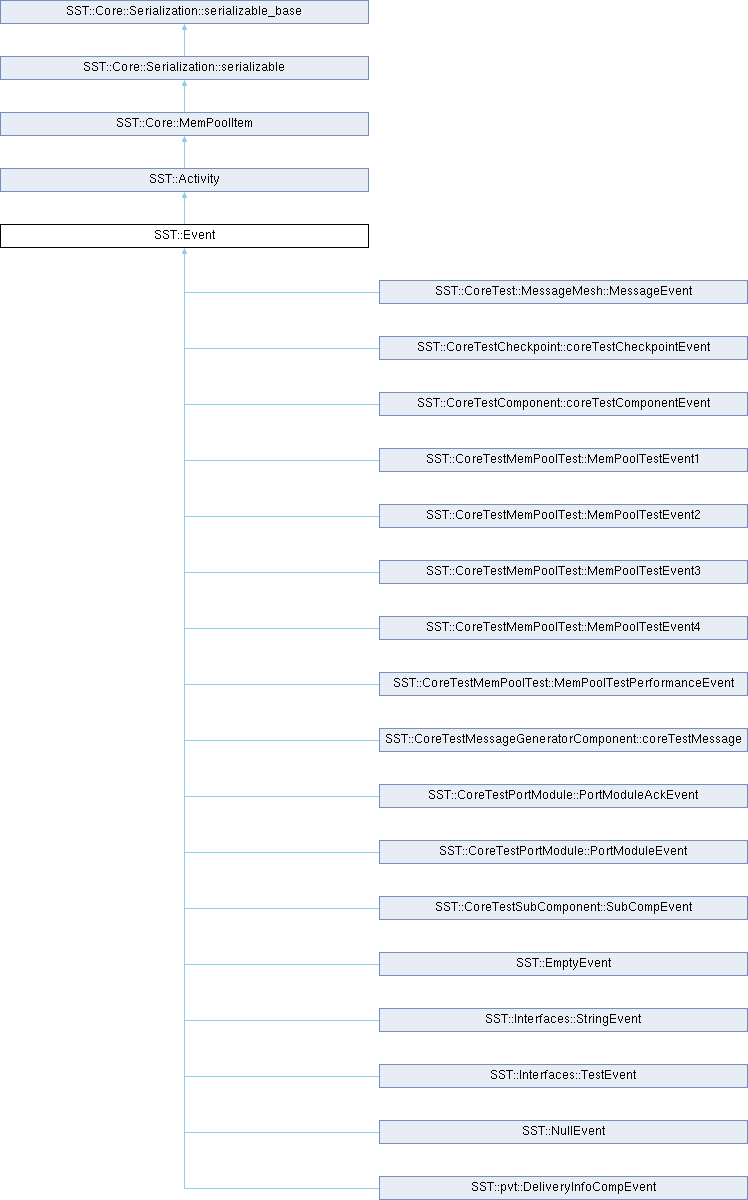

Inheritance diagram for SST::Event:

Data Structures
class	less
	Class used to sort events during checkpointing. More...

Public Types
using	HandlerBase = SSTHandlerBase<void, Event*>
	Base handler for event delivery.
template<typename classT, auto funcT, typename dataT = void>
using	Handler = SSTHandler<void, Event*, classT, dataT, funcT>
	Used to create handlers for event delivery.
using	id_type = std::pair<uint64_t, int>
	Type definition of unique identifiers.

Public Member Functions
virtual Event *	clone ()
	Clones the event in for the case of a broadcast.
bool	isEvent () const override final
bool	isAction () const override final
void	copyAllDeliveryInfo (const Activity *act) override final
void	serialize_order (SST::Core::Serialization::serializer &ser) override
Public Member Functions inherited from SST::Activity
void	setDeliveryTime (SimTime_t time)
	Set the time for which this Activity should be delivered.
SimTime_t	getDeliveryTime () const
	Return the time at which this Activity will be delivered.
int	getPriority () const
	Return the Priority of this Activity.
void	setOrderTag (uint32_t tag)
	Sets the order tag.
uint32_t	getOrderTag () const
	Return the order tag associated with this activity.
uint64_t	getQueueOrder () const
	Returns the queue order associated with this activity.
std::string	toString () const override
	Get a string represenation of the event.
void	setQueueOrder (uint64_t order)
	Set a new Queue order.
Public Member Functions inherited from SST::Core::MemPoolItem
void *	operator new (std::size_t size) noexcept
	Allocates memory from a memory pool for a new Activity.
void	operator delete (void *ptr)
	Returns memory for this Activity to the appropriate memory pool.
virtual void	print (const std::string &header, Output &out) const
Public Member Functions inherited from SST::Core::Serialization::serializable_base
virtual const char *	cls_name () const =0
virtual uint32_t	cls_id () const =0
virtual std::string	serialization_name () const =0

Static Public Attributes
static const id_type	NO_ID = std::make_pair(0, -1)
	Constant, default value for id_types.
Static Public Attributes inherited from SST::Core::Serialization::serializable
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()
Static Public Attributes inherited from SST::Core::Serialization::serializable_base
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()

Protected Member Functions
id_type	generateUniqueId ()
	Generates an ID that is unique across ranks, components and events.
Protected Member Functions inherited from SST::Activity
void	setPriority (uint64_t priority)
	Set the priority of the Activity.
std::string	getDeliveryTimeInfo () const
	Gets the delivery time info as a string.
	ImplementVirtualSerializable (SST::Activity)

Friends
class	pvt::DeliveryInfoCompEvent
class	Link
class	NullEvent
class	RankSync
class	ThreadSync
class	TimeVortex
class	Simulation

Additional Inherited Members
Protected Types inherited from SST::Core::Serialization::serializable_base
enum	cxn_flag_t { ConstructorFlag }
Static Protected Member Functions inherited from SST::Core::Serialization::serializable_base
static void	serializable_abort (uint32_t line, const char *file, const char *func, const char *obj)

Detailed Description

Base class for Events - Items sent across links to communicate between components.

Member Typedef Documentation

Handler

template<typename classT, auto funcT, typename dataT = void>

using SST::Event::Handler = SSTHandler<void, Event*, classT, dataT, funcT>

Used to create handlers for event delivery.

The callback function is expected to be in the form of:

void func(Event* event)

In which case, the class is created with:

new Event::Handler<classname, &classname::function_name>(this)

Or, to add static data, the callback function is:

void func(Event* event, dataT data)

and the class is created with:

new Event::Handler<classname, &classname::function_name, dataT>(this, data)

Member Function Documentation

clone()

DISABLE_WARN_MISSING_NORETURN Event * SST::Event::clone ( )

virtual

Clones the event in for the case of a broadcast.

Reimplemented in SST::Interfaces::StringEvent.

References SST::Output::fatal(), SST::Simulation::getSimulation(), and SST::Simulation::getSimulationOutput().

copyAllDeliveryInfo()

void SST::Event::copyAllDeliveryInfo ( const Activity * act )

inlinefinaloverridevirtual

Reimplemented from SST::Activity.

isAction()

bool SST::Event::isAction ( ) const

inlinefinaloverridevirtual

Implements SST::Activity.

isEvent()

bool SST::Event::isEvent ( ) const

inlinefinaloverridevirtual

Implements SST::Activity.

serialize_order()

void SST::Event::serialize_order ( SST::Core::Serialization::serializer & ser )

inlineoverridevirtual

Reimplemented from SST::Activity.

---

The documentation for this class was generated from the following files:

• src/sst/core/event.h
• src/sst/core/event.cc
