SST::Profile::EventHandlerProfileToolCount Class Reference

Profile tool that will count the number of times a handler is called. More...

#include <eventHandlerProfileTool.h>

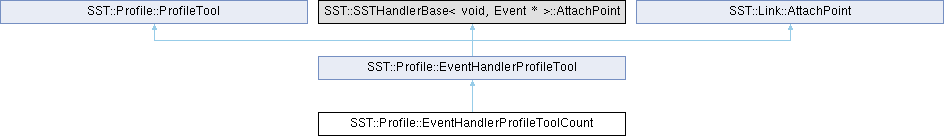

Inheritance diagram for SST::Profile::EventHandlerProfileToolCount:

Public Member Functions
uintptr_t	registerHandler (const AttachPointMetaData &mdata) override
uintptr_t	registerLinkAttachTool (const AttachPointMetaData &mdata) override
	Function that will be called when an attach point is registered with the tool implementing the attach point.
void	beforeHandler (uintptr_t key, const SST::Event *event) override
void	eventSent (uintptr_t key, Event *&ev) override
	Function that will be called when an event is sent on a link with registered attach points.
void	outputData (FILE *fp) override
Public Member Functions inherited from SST::Profile::EventHandlerProfileTool
	SST_ELI_DOCUMENT_PARAMS ({ "level", "Level at which to track profile (global, type, component, subcomponent)", "type" }, { "track_ports", "Controls whether to track by individual ports", "false" }, { "profile_sends", "Controls whether sends are profiled (due to location of profiling point in the code, turning on send profiling will incur relatively high overhead)", "false" }, { "profile_receives", "Controls whether receives are profiled", "true" },) enum class Profile_Level
	EventHandlerProfileTool (const std::string &name, Params &params)
bool	profileSends ()
bool	profileReceives ()
void	beforeHandler (uintptr_t UNUSED(key), const Event *UNUSED(event)) override
void	afterHandler (uintptr_t UNUSED(key)) override
void	eventSent (uintptr_t UNUSED(key), Event *&UNUSED(ev)) override
Public Member Functions inherited from SST::Profile::ProfileTool
std::string	getName ()
Public Member Functions inherited from SST::Link::AttachPoint
virtual void	serializeEventAttachPointKey (SST::Core::Serialization::serializer &ser, uintptr_t &key)
	Function that will be called to handle the key returned from registerLinkAttachTool, if the AttachPoint tool is serializable.

Additional Inherited Members
Protected Member Functions inherited from SST::Profile::EventHandlerProfileTool
std::string	getKeyForHandler (const AttachPointMetaData &mdata)
Protected Attributes inherited from SST::Profile::EventHandlerProfileTool
Profile_Level	profile_level_
bool	track_ports_
bool	profile_sends_
bool	profile_receives_
Protected Attributes inherited from SST::Profile::ProfileTool
const std::string	name

Detailed Description

Profile tool that will count the number of times a handler is called.

Member Function Documentation

eventSent()

void SST::Profile::EventHandlerProfileToolCount::eventSent ( uintptr_t key, Event *& ev )

overridevirtual

Function that will be called when an event is sent on a link with registered attach points.

If ev is set to nullptr, then the event will not be delivered and the tool should delete the original event.

Parameters

key	Opaque key returned from registerLinkAttachTool()

Implements SST::Link::AttachPoint.

References eventSent().

Referenced by eventSent().

outputData()

void SST::Profile::EventHandlerProfileToolCount::outputData ( FILE * fp )

overridevirtual

Implements SST::Profile::ProfileTool.

registerLinkAttachTool()

uintptr_t SST::Profile::EventHandlerProfileToolCount::registerLinkAttachTool ( const AttachPointMetaData & mdata )

overridevirtual

Function that will be called when an attach point is registered with the tool implementing the attach point.

The metadata passed in will be dependent on what type of tool this is attached to. The uintptr_t returned from this function will be passed into the eventSent() function.

Parameters

mdata

Metadata to be passed into the tool

Returns

Opaque key that will be passed back into eventSent() to identify the source of the call

Implements SST::Link::AttachPoint.

References registerLinkAttachTool().

Referenced by registerLinkAttachTool().

---

The documentation for this class was generated from the following files:

• src/sst/core/profile/eventHandlerProfileTool.h
• src/sst/core/profile/eventHandlerProfileTool.cc
