SST::OneShot Class Reference

A OneShot Event class. More...

#include <oneshot.h>

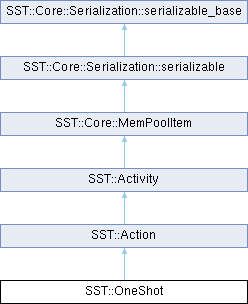

Inheritance diagram for SST::OneShot:

Public Types
using	HandlerBase = SSTHandlerBaseNoArgs<void>
	Base handler for OneShot callbacks.
template<typename classT, auto funcT, typename dataT = void>
using	Handler2 = SSTHandler2<void, void, classT, dataT, funcT>
	Used to create checkpointable handlers for OneShot.
using	HandlerVectorMap_t = std::deque<std::pair<SimTime_t, HandlerList_t*>>

Public Member Functions
	OneShot (TimeConverter *timeDelay, int priority=ONESHOTPRIORITY)
	Create a new One Shot for a specified time that will callback the handler function.
bool	isScheduled ()
	Is OneShot scheduled.
void	registerHandler (OneShot::HandlerBase *handler)
	Add a handler to be called on this OneShot Event.
void	print (const std::string &header, Output &out) const override
	Print details about the OneShot.
void	execute () override
	Function which will be called when the time for this Activity comes to pass.
void	scheduleOneShot ()
SimTime_t	computeDeliveryTime ()
Public Member Functions inherited from SST::Action
bool	isAction () override final
Public Member Functions inherited from SST::Activity
void	setDeliveryTime (SimTime_t time)
	Set the time for which this Activity should be delivered.
SimTime_t	getDeliveryTime () const
	Return the time at which this Activity will be delivered.
int	getPriority () const
	Return the Priority of this Activity.
void	setOrderTag (uint32_t tag)
	Sets the order tag.
uint32_t	getOrderTag () const
	Return the order tag associated with this activity.
uint64_t	getQueueOrder () const
	Returns the queue order associated with this activity.
virtual bool	isEvent ()
std::string	toString () const override
	Get a string represenation of the event.
void	setQueueOrder (uint64_t order)
	Set a new Queue order.
virtual void	copyAllDeliveryInfo (const Activity *act)
Public Member Functions inherited from SST::Core::MemPoolItem
void *	operator new (std::size_t size) noexcept
	Allocates memory from a memory pool for a new Activity.
void	operator delete (void *ptr)
	Returns memory for this Activity to the appropriate memory pool.
Public Member Functions inherited from SST::Core::Serialization::serializable_base
virtual const char *	cls_name () const =0
virtual uint32_t	cls_id () const =0
virtual std::string	serialization_name () const =0

Data Fields
TimeConverter *	m_timeDelay
HandlerVectorMap_t	m_HandlerVectorMap
bool	m_scheduled

Additional Inherited Members
Static Public Attributes inherited from SST::Core::Serialization::serializable
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()
Static Public Attributes inherited from SST::Core::Serialization::serializable_base
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()
Protected Types inherited from SST::Core::Serialization::serializable_base
enum	cxn_flag_t { ConstructorFlag }
Protected Member Functions inherited from SST::Action
void	endSimulation ()
	Called to signal to the Simulation object to end the simulation.
void	endSimulation (SimTime_t end)
	Called to signal to the Simulation object to end the simulation.
void	serialize_order (SST::Core::Serialization::serializer &ser) override
Protected Member Functions inherited from SST::Activity
void	setPriority (uint64_t priority)
	Set the priority of the Activity.
std::string	getDeliveryTimeInfo () const
	Gets the delivery time info as a string.
void	serialize_order (SST::Core::Serialization::serializer &ser) override
	ImplementVirtualSerializable (SST::Activity)
Static Protected Member Functions inherited from SST::Core::Serialization::serializable_base
static void	serializable_abort (uint32_t line, const char *file, const char *func, const char *obj)

Detailed Description

A OneShot Event class.

Calls callback functions (handlers) on a specified period

Member Typedef Documentation

Handler2

template<typename classT, auto funcT, typename dataT = void>

using SST::OneShot::Handler2 = SSTHandler2<void, void, classT, dataT, funcT>

Used to create checkpointable handlers for OneShot.

The callback function is expected to be in the form of:

void func()

In which case, the class is created with:

new OneShot::Handler2<classname, &classname::function_name>(this)

Or, to add static data, the callback function is:

void func(dataT data)

and the class is created with:

new OneShot::Handler2<classname, &classname::function_name, dataT>(this, data)

Constructor & Destructor Documentation

OneShot()

SST::OneShot::OneShot	(	TimeConverter *	timeDelay,
		int	priority = ONESHOTPRIORITY )

Create a new One Shot for a specified time that will callback the handler function.

Note: OneShot cannot be canceled, and will always callback after the timedelay.

References OneShot(), and SST::Activity::setPriority().

Referenced by OneShot().

Member Function Documentation

execute()

void SST::OneShot::execute ( )

overridevirtual

Function which will be called when the time for this Activity comes to pass.

Implements SST::Activity.

References SST::Simulation_impl::getCurrentSimCycle(), and SST::Simulation_impl::getSimulation().

print()

void SST::OneShot::print ( const std::string & header, Output & out ) const

overridevirtual

Print details about the OneShot.

Reimplemented from SST::Core::MemPoolItem.

References SST::Activity::getDeliveryTime(), SST::Activity::getPriority(), and SST::Output::output().

---

The documentation for this class was generated from the following files:

• src/sst/core/oneshot.h
• src/sst/core/oneshot.cc
