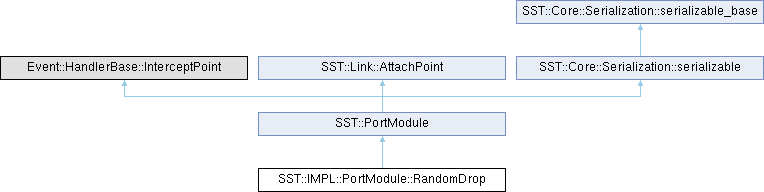

Inheritance diagram for SST::IMPL::PortModule::RandomDrop:

Public Member Functions
	SST_ELI_REGISTER_PORTMODULE (RandomDrop, "sst", "portmodules.random_drop", SST_ELI_ELEMENT_VERSION(0, 1, 0), "Port module that will randomly drop events based on specified propability") SST_ELI_DOCUMENT_PARAMS(

uintptr_t	registerLinkAttachTool (const AttachPointMetaData &mdata) override
	Function that will be called when a PortModule is registered on sends (i.e.

void	eventSent (uintptr_t key, Event *&ev) override
	Function that will be called when an event is sent on a link with registered PortModules.

uintptr_t	registerHandlerIntercept (const AttachPointMetaData &mdata) override
	Function that will be called when a handler is registered with recieves (i.e.

void	interceptHandler (uintptr_t key, Event *&data, bool &cancel) override
	Function that will be called before the event handler to let the attach point intercept the data.

bool	installOnReceive () override
	Called to determine if the PortModule should be installed on receives.

bool	installOnSend () override
	Called to determine if the PortModule should be installed on sends.

Public Member Functions inherited from SST::PortModule
	SST_ELI_DECLARE_INFO_EXTERN (ELI::ProvidesParams, ELI::ProvidesAttributes) PortModule()=default

virtual void	serializeEventAttachPointKey (SST::Core::Serialization::serializer &ser, uintptr_t &key) override
	Function that will be called to handle the key returned from registerLinkAttachTool, if the AttachPoint tool is serializable.

virtual void	serializeHandlerInterceptPointKey (SST::Core::Serialization::serializer &ser, uintptr_t &key) override
	Function that will be called to handle the key returned from registerHandlerIntercept, if the AttachPoint tool is serializable.

Public Member Functions inherited from SST::Core::Serialization::serializable_base
virtual const char *	cls_name () const =0

virtual uint32_t	cls_id () const =0

virtual std::string	serialization_name () const =0

Protected Member Functions
void	serialize_order (SST::Core::Serialization::serializer &ser) override

	ImplementSerializable (SST::IMPL::PortModule::RandomDrop)

Protected Member Functions inherited from SST::PortModule
UnitAlgebra	getCoreTimeBase () const
	Get the core timebase.

SimTime_t	getCurrentSimCycle () const
	Return the current simulation time as a cycle count.

int	getCurrentPriority () const
	Return the current priority.

UnitAlgebra	getElapsedSimTime () const
	Return the elapsed simulation time as a time.

Output &	getSimulationOutput () const
	Return the base simulation Output class instance.

SimTime_t	getCurrentSimTime (TimeConverter *tc) const
	Return the simulated time since the simulation began in units specified by the parameter.

SimTime_t	getCurrentSimTime (TimeConverter &tc) const

SimTime_t	getCurrentSimTime (const std::string &base) const
	Return the simulated time since the simulation began in timebase specified.

SimTime_t	getCurrentSimTimeNano () const
	Utility function to return the time since the simulation began in nanoseconds.

SimTime_t	getCurrentSimTimeMicro () const
	Utility function to return the time since the simulation began in microseconds.

SimTime_t	getCurrentSimTimeMilli () const
	Utility function to return the time since the simulation began in milliseconds.

Additional Inherited Members
Static Public Attributes inherited from SST::Core::Serialization::serializable
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()

Static Public Attributes inherited from SST::Core::Serialization::serializable_base
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()

Protected Types inherited from SST::Core::Serialization::serializable_base
enum	cxn_flag_t { ConstructorFlag }

Static Protected Member Functions inherited from SST::Core::Serialization::serializable_base
static void	serializable_abort (uint32_t line, const char file, const char func, const char *obj)

Member Function Documentation

◆ eventSent()

void SST::IMPL::PortModule::RandomDrop::eventSent	(	uintptr_t	key,
		Event *&	ev )

overridevirtual

Function that will be called when an event is sent on a link with registered PortModules.

If ev is set to nullptr, then the event will not be delivered and the function should delete the original event.

NOTE: It is possible to delete the incoming event and replace it with a new event, if this is done, the new event MUST call copyAllDeliveryInfo(ev) or the event will not be properly processed.

Parameters

key	Opaque key returned from registerLinkAttachTool()
ev	Event to intercept

Implements SST::PortModule.

References eventSent(), SST::PortModule::getCurrentSimCycle(), and SST::PortModule::getSimulationOutput().

Referenced by eventSent().

◆ installOnReceive()

bool SST::IMPL::PortModule::RandomDrop::installOnReceive ( )

inlineoverridevirtual

Called to determine if the PortModule should be installed on receives.

Returns: true if PortModule should be installed on receives

Reimplemented from SST::PortModule.

◆ installOnSend()

bool SST::IMPL::PortModule::RandomDrop::installOnSend ( )

inlineoverridevirtual

Called to determine if the PortModule should be installed on sends.

NOTE: Install PortModules on sends will have a noticeable impact on performance, consider architecting things so that you can intercept on receives.

Returns: true if PortModule should be installed on sends

Reimplemented from SST::PortModule.

◆ interceptHandler()

void SST::IMPL::PortModule::RandomDrop::interceptHandler	(	uintptr_t	key,
		Event *&	data,
		bool &	cancel )

overridevirtual

Function that will be called before the event handler to let the attach point intercept the data.

The data can be modified, and if cancel is set to true, the handler will not be executed. If cancel is set to true, then the function should also delete the event and set data to nullptr.

NOTE: It is possible to delete the incoming event and replace the it with a new event, if this is done, the new event MUST call copyAllDeliveryInfo(ev) or the event will not be properly processed.

Parameters

	key	Key returned from registerHandlerIntercept() function
	data	Event that is to be passed to the handler
[out]	cancel	Set to true if the handler delivery should be cancelled. If set to true, function must also delete the event

Implements SST::PortModule.

References SST::PortModule::getCurrentSimCycle(), SST::PortModule::getSimulationOutput(), and interceptHandler().

Referenced by interceptHandler().

◆ registerHandlerIntercept()

uintptr_t SST::IMPL::PortModule::RandomDrop::registerHandlerIntercept ( const AttachPointMetaData & mdata )

overridevirtual

Function that will be called when a handler is registered with recieves (i.e.

installOnReceive() returns true). The uintptr_t returned from this function will be passed into the intercept() function.

The default implemenation will just return 0 and only needs to be overwritten if the module needs any of the metadata and/or needs to return a unique key.

Parameters

mdata Metadata to be passed into the tool. NOTE: The metadata will be of type EventHandlerMetaData (see sst/core/event.h)

Returns: Opaque key that will be passed back into the interceptHandler() calls

Reimplemented from SST::PortModule.

References registerHandlerIntercept().

Referenced by registerHandlerIntercept().

◆ registerLinkAttachTool()

uintptr_t SST::IMPL::PortModule::RandomDrop::registerLinkAttachTool ( const AttachPointMetaData & mdata )

overridevirtual

Function that will be called when a PortModule is registered on sends (i.e.

installOnSend() returns true). The uintptr_t returned from this function will be passed into the eventSent() function.

The default implemenation will just return 0 and only needs to be overwritten if the module needs any of the metadata and/or needs to return a unique key.

Parameters

mdata Metadata to be passed into the tool. NOTE: The metadata will be of type EventHandlerMetaData (see sst/core/event.h)

Returns: Opaque key that will be passed back into eventSent() to identify the source of the call

Reimplemented from SST::PortModule.

References registerLinkAttachTool().

Referenced by registerLinkAttachTool().

◆ serialize_order()

void SST::IMPL::PortModule::RandomDrop::serialize_order ( SST::Core::Serialization::serializer & ser )

overrideprotectedvirtual

Reimplemented from SST::PortModule.

The documentation for this class was generated from the following files:

src/sst/core/impl/portmodules/randomDrop.h
src/sst/core/impl/portmodules/randomDrop.cc
