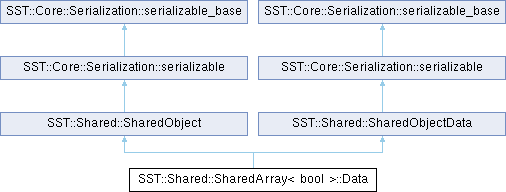

Inheritance diagram for SST::Shared::SharedArray< bool >::Data:

Public Types
using	const_iterator

using	const_reverse_iterator

Public Types inherited from SST::Shared::SharedObject
enum	verify_type { VERIFY_UNINITIALIZED , FE_VERIFY , INIT_VERIFY , NO_VERIFY }
	Enum of verify types.

Public Member Functions
	Data (const std::string &name)

void	setSize (size_t size, bool init_data, verify_type v_type)
	Set the size of the array.

size_t	getSize ()

void	update_write (int index, bool data)

void	write (int index, bool data)

bool	read (int index) const

bool	mutex_read (int index) const

virtual SharedObjectChangeSet *	getChangeSet () override
	Gets the changeset for this data on this rank.

virtual void	resetChangeSet () override
	Resets the changeset for this data on this rank.

void	serialize_order (SST::Core::Serialization::serializer &ser) override

	ImplementSerializable (SST::Shared::SharedArray< bool >::Data)

	Data (const std::string &name)

void	setSize (size_t size, const bool &init_data, verify_type v_type)
	Set the size of the array.

size_t	getSize ()

void	update_write (int index, const bool &data)

void	write (int index, const bool &data)

const bool &	read (int index) const

const bool &	mutex_read (int index) const

virtual SharedObjectChangeSet *	getChangeSet () override
	Gets the changeset for this data on this rank.

virtual void	resetChangeSet () override
	Resets the changeset for this data on this rank.

void	serialize_order (SST::Core::Serialization::serializer &ser) override

	ImplementSerializable (SST::Shared::SharedArray< bool >::Data)

	SharedArray ()
	Default constructor for SharedArray.

	~SharedArray ()
	Shared Array Destructor.

int	initialize (const std::string &obj_name, size_t length=0, bool init_value=bool(), verify_type v_type=INIT_VERIFY)
	Initialize the SharedArray.

size_t	size () const
	Get the length of the array.

bool	empty () const
	Tests if array is empty.

const_iterator	begin () const
	Get const_iterator to beginning of underlying map.

const_iterator	end () const
	Get const_iterator to end of underlying map.

const_reverse_iterator	rbegin () const
	Get const_reverse_iterator to beginning of underlying map.

const_reverse_iterator	rend () const
	Get const_reverse_iterator to end of underlying map.

void	publish ()
	Indicate that the calling element has written all the data it plans to write.

bool	isFullyPublished ()
	Check whether all instances of this SharedArray have called publish().

void	write (int index, const bool &value)
	Write data to the array.

const bool &	operator[] (int index) const
	Read data from the array.

const bool &	mutex_read (int index) const
	Read data from the array.

void	serialize_order (SST::Core::Serialization::serializer &ser) override

Public Member Functions inherited from SST::Shared::SharedObject
virtual void	serialize_order (SST::Core::Serialization::serializer &UNUSED(ser)) override

void	incPublishCount (SharedObjectData *data)

int	incShareCount (SharedObjectData *data)

Public Member Functions inherited from SST::Core::Serialization::serializable_base
virtual const char *	cls_name () const =0

virtual uint32_t	cls_id () const =0

virtual std::string	serialization_name () const =0

Public Member Functions inherited from SST::Shared::SharedObjectData
const std::string &	getName ()
	Get the name of the SharedObject for this data.

bool	isFullyPublished ()
	Checks to see if all instances of this SharedObject have called publish().

virtual int	getShareCount ()
	Get the number of sharers for this data.

virtual int	getPublishCount ()
	Get the number of instances that have called publish() on their instance of the shared object.

Data Fields
std::vector< bool >	array

std::vector< bool >	written

ChangeSet *	change_set

bool	init

verify_type	verify

std::vector< bool >	array

std::vector< bool >	written

ChangeSet *	change_set

bool	init

verify_type	verify

ImplementSerializable(SST::Shared::SharedArray< bool >) private Data *	data

Additional Inherited Members
Static Public Attributes inherited from SST::Shared::SharedObject
static ImplementSerializable(SST::Shared::SharedObject) protected SharedObjectDataManager	manager

Static Public Attributes inherited from SST::Core::Serialization::serializable
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()

Static Public Attributes inherited from SST::Core::Serialization::serializable_base
static constexpr uint32_t	NullClsId = std::numeric_limits<uint32_t>::max()

Protected Types inherited from SST::Core::Serialization::serializable_base
enum	cxn_flag_t { ConstructorFlag }

Protected Member Functions inherited from SST::Shared::SharedObjectData
void	check_lock_for_write (const std::string &obj)

virtual int	incShareCount ()
	Increment the count of sharers.

virtual void	incPublishCount ()
	Increment the count of instances that have called publish.

void	lock ()
	Called by the core when writing to shared regions is no longer allowed.

	SharedObjectData (const std::string &name)
	Constructor for SharedObjectData.

virtual	~SharedObjectData ()
	Destructor for SharedObjectData.

void	serialize_order (SST::Core::Serialization::serializer &ser) override

	ImplementVirtualSerializable (SharedObjectData)

Static Protected Member Functions inherited from SST::Core::Serialization::serializable_base
static void	serializable_abort (uint32_t line, const char file, const char func, const char *obj)

Protected Attributes inherited from SST::Shared::SharedObjectData
std::string	name

int	share_count

int	publish_count

bool	fully_published

bool	locked

std::mutex	mtx

Member Function Documentation

◆ empty()

bool SST::Shared::SharedArray< bool >::empty ( ) const

inline

Tests if array is empty.

Returns: true if array is empty (size = 0), false otherwise

◆ getChangeSet() [1/2]

virtual SharedObjectChangeSet * SST::Shared::SharedArray< bool >::Data::getChangeSet ( )

inlineoverridevirtual

Gets the changeset for this data on this rank.

This is called by the core when exchanging and merging data

Implements SST::Shared::SharedObjectData.

◆ getChangeSet() [2/2]

virtual SharedObjectChangeSet * SST::Shared::SharedArray< bool >::Data::getChangeSet ( )

inlineoverridevirtual

Gets the changeset for this data on this rank.

This is called by the core when exchanging and merging data

Implements SST::Shared::SharedObjectData.

◆ initialize()

int SST::Shared::SharedArray< bool >::initialize	(	const std::string &	obj_name,
		size_t	length = 0,
		bool	init_value = T(),
		verify_type	v_type = INIT_VERIFY )

inline

Initialize the SharedArray.

Parameters

obj_name	Name of the object. This name is how the object is uniquely identified across ranks.
length	Length of the array. The length can be 0 if no data is going to be written by the calling element, otherwise, it must be large enough to write the desired data. The final length of the array will be the maximum of the requested lengths. The length of the array can be queried using the size() method.
init_value	value that entries should be initialized to. By default, each array item will be initialized using the default constructor for the class being stored.
verify_mode	Specifies how multiply written data should be verified. FE_VERIFY uses a full/empty bit for each entry and if a value has previously been written, it will make sure the two values match. INIT_VERIFY will simply compare writes against the current value and will error unless the values aren't the same or the existing value is the init_value. When NO_VERIFY is passed, no verification will occur. This is mostly useful when you can guarantee that multiple elements won't write the same value and you want to do in-place modifications as you initialize. VERIFY_UNINITIALIZED is a reserved value and should not be passed.

Returns: returns the number of instances that have intialized themselve before this instance on this MPI rank.

◆ isFullyPublished()

bool SST::Shared::SharedArray< bool >::isFullyPublished ( )

inline

Check whether all instances of this SharedArray have called publish().

NOTE: Is is possible that this could return true one round, but false the next if a new instance of the SharedArray was initialized but not published after the last call.

◆ mutex_read()

const bool & SST::Shared::SharedArray< bool >::mutex_read ( int index ) const

inline

Read data from the array.

This returns a const reference, so is read only. This version of read is always thread safe (

See also: operator[]).

Parameters

index index to read

Returns: const reference to data at index

◆ operator[]()

const bool & SST::Shared::SharedArray< bool >::operator[] ( int index ) const

inline

Read data from the array.

This returns a const reference, so is read only.

NOTE: This function does not use a mutex, so it is possible to get invalid results if another thread caused a resize of the underlying data structure at the same time as the read. However, after the init() phase of simulation is complete (in setup() and beyond), this is always a safe operation. If reading during init() and you can't guarantee that all elements have already written all data to the SharedArray, use mutex_read() to guarantee thread safety.

Parameters

index index to read

Returns: const reference to data at index

◆ publish()

void SST::Shared::SharedArray< bool >::publish ( )

inline

Indicate that the calling element has written all the data it plans to write.

Writing to the array through this instance after publish() is called will create an error.

◆ resetChangeSet() [1/2]

virtual void SST::Shared::SharedArray< bool >::Data::resetChangeSet ( )

inlineoverridevirtual

Resets the changeset for this data on this rank.

This is called by the core when exchanging and merging data

Implements SST::Shared::SharedObjectData.

◆ resetChangeSet() [2/2]

virtual void SST::Shared::SharedArray< bool >::Data::resetChangeSet ( )

inlineoverridevirtual

Resets the changeset for this data on this rank.

This is called by the core when exchanging and merging data

Implements SST::Shared::SharedObjectData.

◆ serialize_order() [1/3]

void SST::Shared::SharedArray< bool >::serialize_order ( SST::Core::Serialization::serializer & ser )

inlineoverridevirtual

Implements SST::Core::Serialization::serializable_base.

◆ serialize_order() [2/3]

void SST::Shared::SharedArray< bool >::Data::serialize_order ( SST::Core::Serialization::serializer & ser )

inlineoverridevirtual

Implements SST::Core::Serialization::serializable_base.

◆ serialize_order() [3/3]

void SST::Shared::SharedArray< bool >::Data::serialize_order ( SST::Core::Serialization::serializer & ser )

inlineoverridevirtual

Implements SST::Core::Serialization::serializable_base.

◆ setSize() [1/2]

void SST::Shared::SharedArray< bool >::Data::setSize	(	size_t	size,
		bool	init_data,
		verify_type	v_type )

inline

Set the size of the array.

An element can only write up to the current size (reading or writing beyond the size will create undefined behavior). However, an element can put in the size it needs for its writes and it will end up being the largest size requested. We use a vector underneatch the covers to manage the memory/copying of data.

References SST::Shared::SharedObjectData::lock(), and size().

◆ setSize() [2/2]

void SST::Shared::SharedArray< bool >::Data::setSize	(	size_t	size,
		const bool &	init_data,
		verify_type	v_type )

inline

Set the size of the array.

An element can only write up to the current size (reading or writing beyond the size will create undefined behavior). However, an element can put in the size it needs for it's writes and it will end up being the largest size requested. We use a vector underneatch the covers to manage the memory/copying of data.

◆ size()

size_t SST::Shared::SharedArray< bool >::size ( ) const

inline

Get the length of the array.

Returns: length of the array

Referenced by setSize().

◆ write()

void SST::Shared::SharedArray< bool >::write	(	int	index,
		const bool &	value )

inline

Write data to the array.

This function is thread-safe, as a mutex is used to ensure only one write at a time.

Parameters

index	index of the write
value	value to be written

The documentation for this class was generated from the following file:

src/sst/core/shared/sharedArray.h
